Advantage：
High module efficiency through superior manufacturing technology
Due to the use of multi-busbar solar cells, the temperaturecoefficient has been improved, resulting in no power loss.
Strictly control the micro-crack of solar cells and the othernon visible defect of internal modules
Module can bear snow loads up to 5400Paand wind loads up to 2400Pa
Manufactured according to and certified international I Qualityand Environment Management System
Using advanced low reflection and high light transmission glassand cell sheet surface cutting technology, in the weak light environment can also play a good performance.
Certificates：
· IEC61215,IEC61730,CQC、CE、TUV
· IS09001:2015
· IS014001:2015
· IS045001:2018
Electrical Characteristics
Model | NS-300MH-60 | NS-310MH-60 |
Maximum Power at STC (Pmax) | 300W | 310W |
Optimum Operating Voltage (Vmp) | 32.13V | 32.33V |
Optimum Operating Current (Imp) | 9.34A | 9.59A |
Open-Circuit Voltage (Voc) | 37.75V | 37.95V |
Short-Circuit Current (Isc) | 10.18A | 10.47A |
Solar Cell Efficiency (%) | 20.86% | 21.44% |
Solar Module Efficiency (%) | 18.44% | 19.05% |
Operating Temperature | -40 to 85℃ |
Maximum System Voltage | DC1500V |
Maximum Series Fuse Rating | 15A |
Power Tolerance | 0~+3% |
STC:Irradiance 1000W/m²,Modules Temperature 25℃,AM=1.5 |
Temperature Coefficient
NOCT | 45℃±2℃ |
Temperature Coefficient of Pmax | -0.34%/℃ |
Temperature Coefficient of VOC | -0.26%/℃ |
Temperature Coefficient of ISC | +0.05%/℃ |

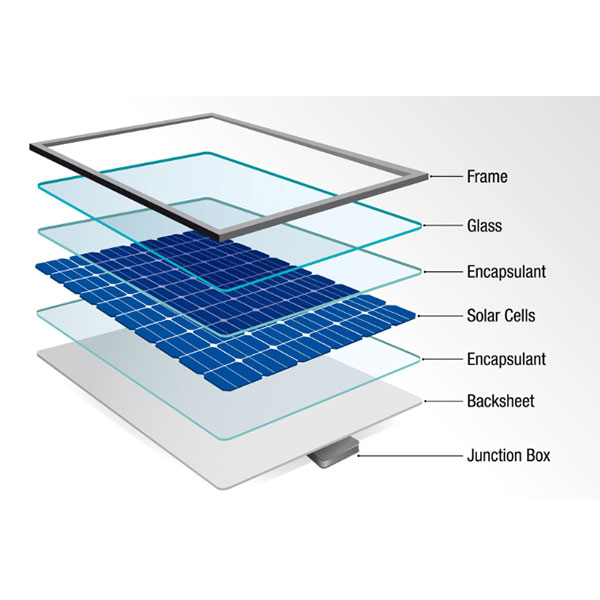

Mechanical Characteristics
No.of cells | 60(6×10) |
Dimensions | 1640mm*992mm*30mm |
Weight | 18kg ±3% |
Front glass | 3.2mm tempered glass |
Frame | Anodized aluminium alloy |
Junction box | IP68, tdree diodes |
Connector | Plug and socket |
Output cables | PV 4.0mm² |
1*40'HQ | 31pcs/Pallet,868pcs/ 40'HQ; |
