KEY FEATURES
· 10-30% Additional Power Generation 30 years lifespan brings 10-30% additional power
· ZERO LID (Light Induced Degradation) N-type solar cell has no LID naturally whichincrease power geherationcan
· Excellent low temperature coefficient, generating1%-2% more electricity in high-temperature areas.
· Module can bear snow loads up to 5400 Paand wind loads up to 2400Pa
· Manufactured according to and certified international I Qualityand Environment Management System

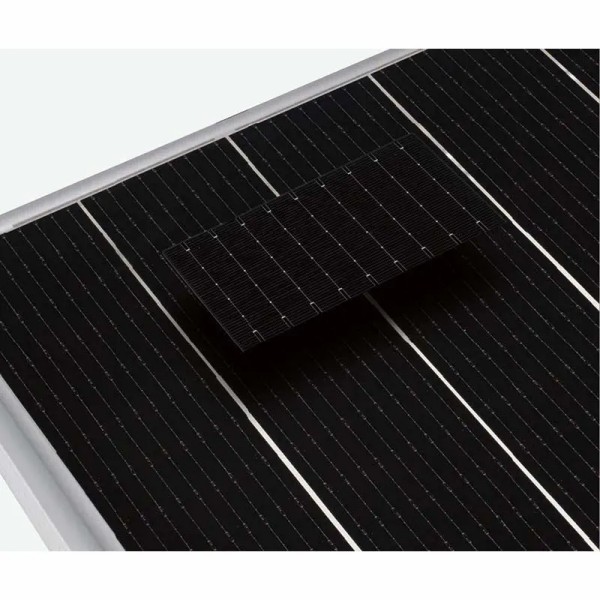

· Using advanced low reflection and high light transmission glassid cell sheet surface cutting technology, in the weak · lightvironment can also play a good performance.
Certificates
· IEC61215,IEC61730,CQC、CE、TUV、UKCA
· ISO9001:2015
· ISO14001:2015
· ISO45001:2018
Electrical Characteristics
Model | NS-620MH |
Maximum Power at STC(Pmax) | 620W |
Optimum Operating Voltage (Vmp) | 41.40V |
Optimum Operating Current (Imp) | 14.99A |
Open-Circuit Voltage (Voc) | 49.60V |
Short-Circuit Current (Isc) | 15.91A |
Solar Cell Efficiency (%) | 24.82 |
Solar Module Efficiency (%) | 22.93 |
Operating Temperature | -40 to 85℃ |
Maximum System Voltage | DC1500V |
Maximum Series Fuse Rating | 30A |
Power Tolerance | 0~+3% |
STC | Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5 |
Temperature Coefficient
| NOCT | 45℃±2℃ |
| Temperature Coefficient of Pmax | -0.29%/℃ |
| Temperature Coefficient of VOC | -0.25%/℃ |
| Temperature Coefficient of ISC | +0.045%/℃ |
Mechanical Characteristics
| No.of cells | 132(6×11+6×11) |
| Dimensions | 2384mm*1134mm*30mm |
| Weight | 33.5kg ±3% |
| Front Glass | 2mm Tempered glass |
| Back Glass | 2mm Heat Strengtdened glass |
| Frame | Anodized aluminum alloy |
| Junction box | IP68, tdree diodes |
| Connector | Plug and socket |
| Output cables | PV 4.0mm² |

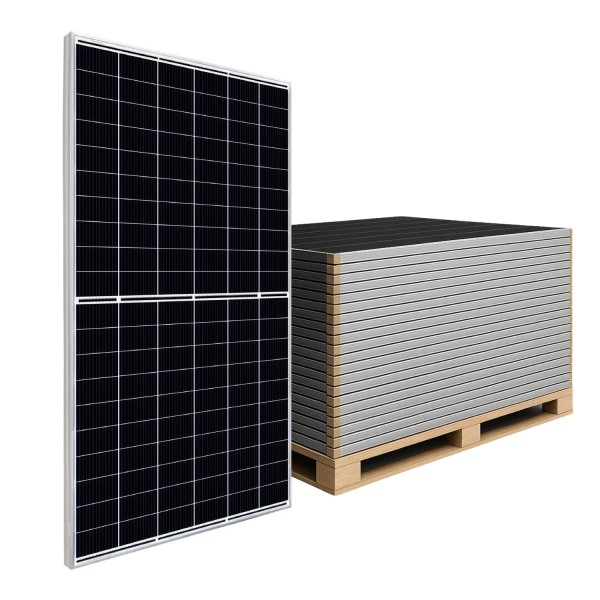

| 1*40'HQ | 37 pcs/Pallet, 740pcs/40'HQ; |
